Ventilation

• 48′′ canopy depth maximizes the capture range of the vent hood
• Two independent and individually controlled 1000 CFM 4 speed motors (2000 CFMs
  total) provide exceptional smoke removal
• Higher allowable install height creates a more comfortable work area
• 4 LED lights illuminate your cooking surface any time of day or night
• Innovative grease free retractable controls with lighted facing

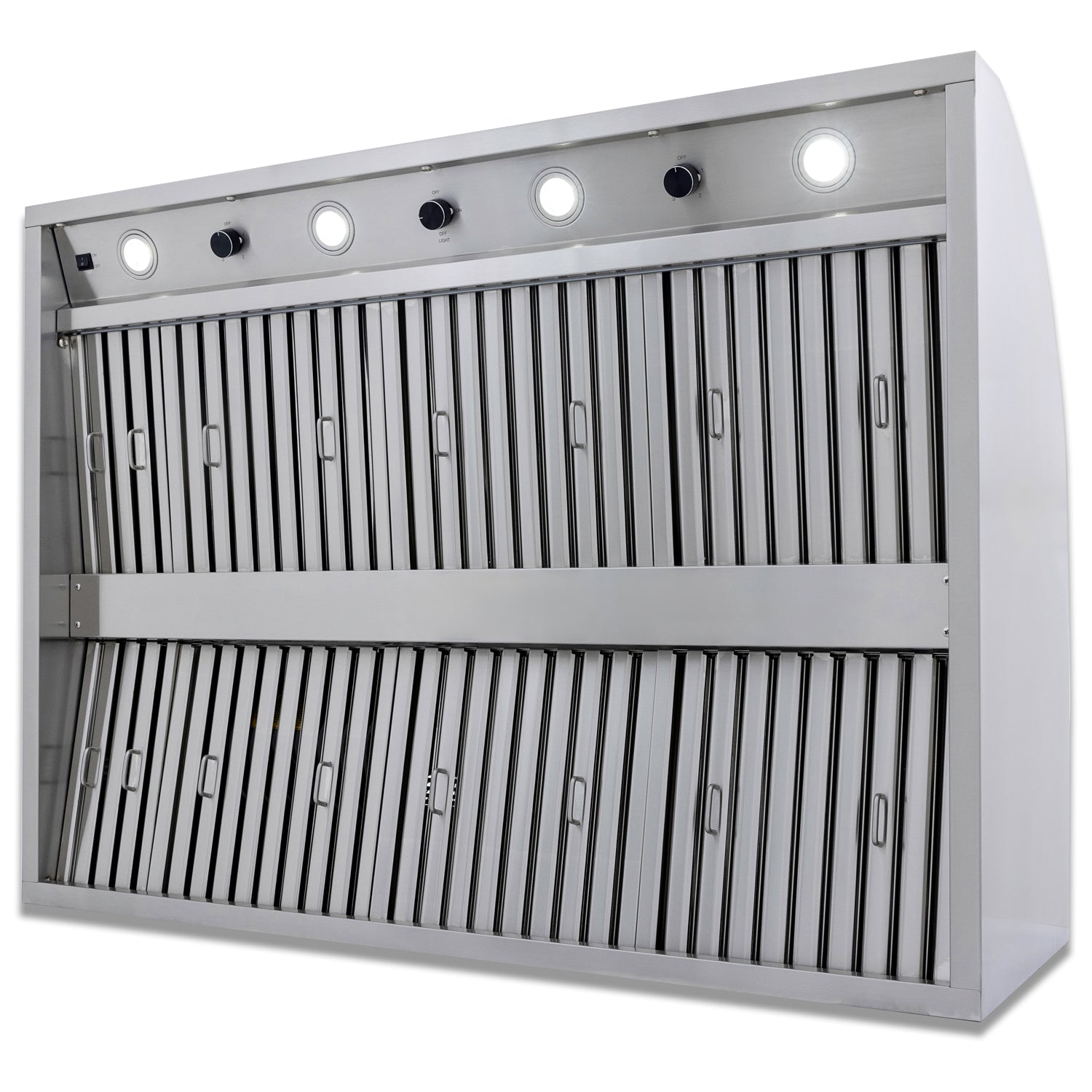

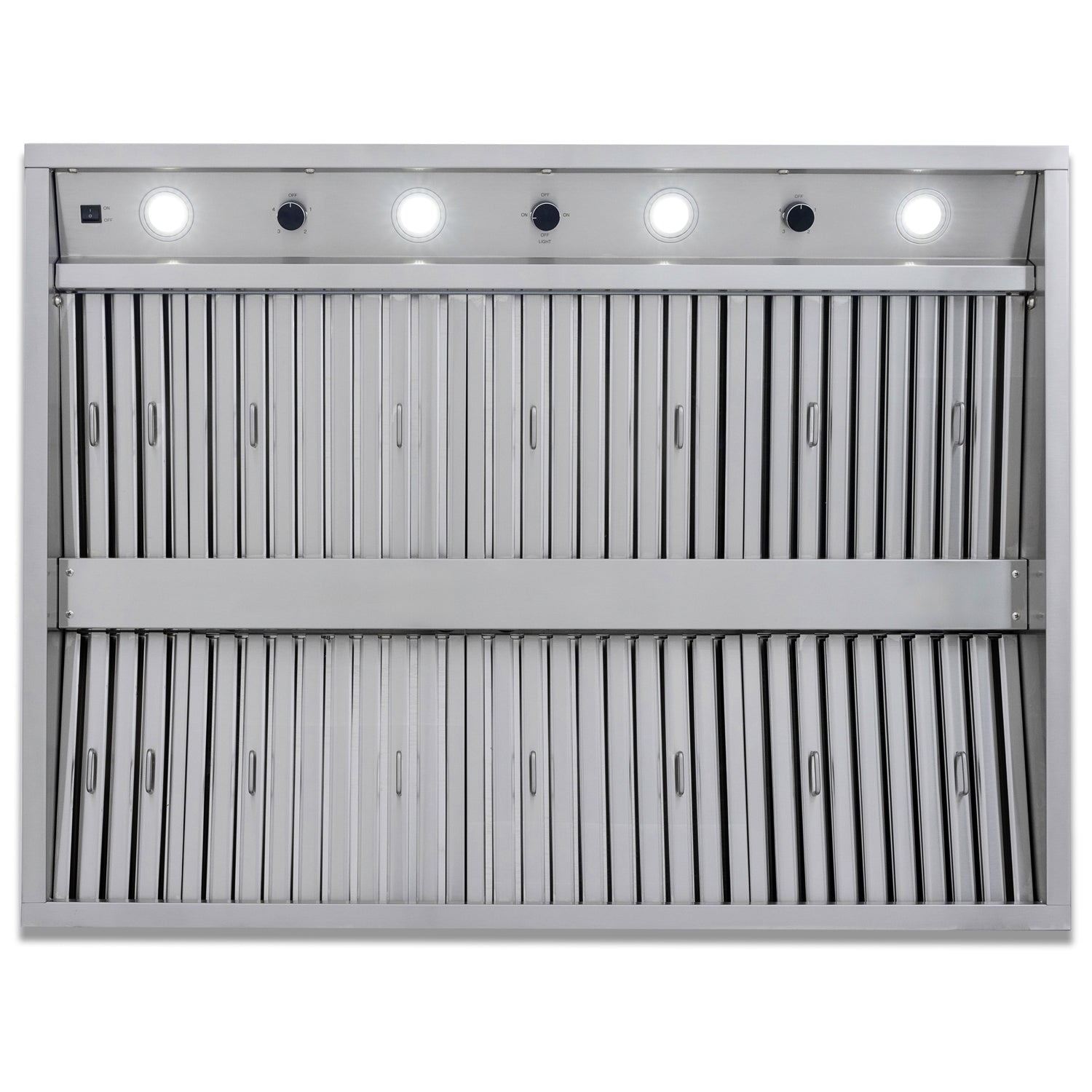

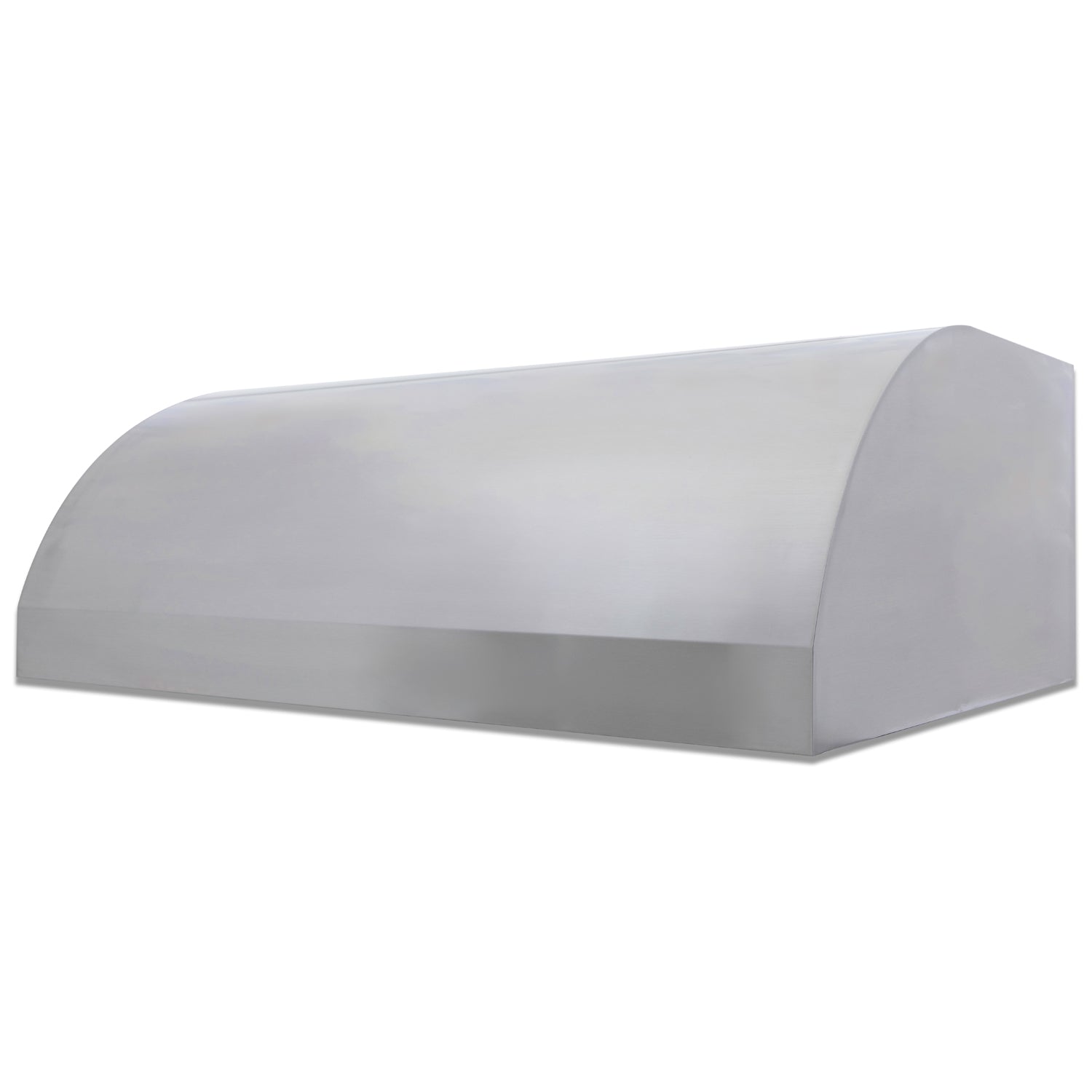

Ventilating an outdoor cooking space can be challenging due to the increased amount of smoke produced by outdoor cooking equipment. The Blaze Outdoor Vent Hood pairs a deeper hood canopy with a powerful twin motor system to effectively clean the air from the grilling area. The industry-leading 36′′ depth of the Blaze Hood protrudes further over the cooking space capturing more smoke when the grill lid is opened. The twin 1000 cfm motors create 2000 CFMs of pull which averages 60% greater suction when compared to stronger outside hoods on the market today. The Blaze 48″ Vent Hood has powerful suction and increased depth allow an installation further away from the cooking surface. This offers both an easier view of the cooking area along with increased comfort for the chef.

Product Specs
Weight    185 lbs
Dimensions
48" W × 36" D × 18" H

Controller
Knob Rotary Control

Speeds
4 speeds

Blowers
2 × 1000 cfm

Light
4 pcs 3W 12V LED lights

Filter
Stainless Steel Baffle

Power
120V / 60Hz

Duct
8" Round Duct Vent Exhaust

Construction
1.0mm Stainless Steel

Packing
129 cm H × 53 cm W × 100 cm D

Blaze 48″ Vent Hood User Manual

SKU: BLZ-48-VHOOD
